Descripción
Product Code: OG3M
Style: Universal
Image Mag: .93x
Contact Diameter: 18mm
Lens Height: 32mm
Static Gonio FOV: 140°
Journal Reference: The Journal of Ophthalmic Photography, Vol. 26, No. 1, pp, 13-19, Spring 2004
Ocular® Three Mirror Universal Diagnostic – 18mm OG3M
Especificaciones

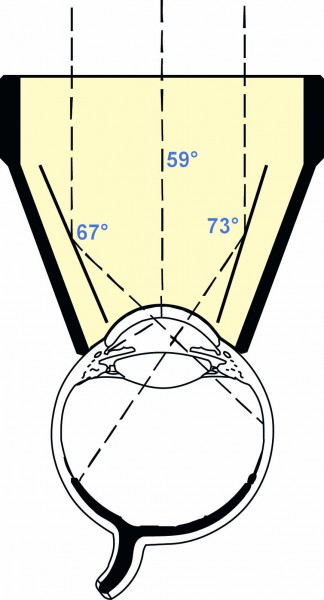

This classic «Goldmann» type lens has three mirrors angled at 59°, 67° and 73° to permit viewing of the peripheral fundus and anterior chamber angle. 36° of the posterior pole can be viewed through the center of the lens. Many heights and diameters are available. Gonio mag .80x. Also available with our high performance anti-reflective coating. See Coatings and Materials for more details.
