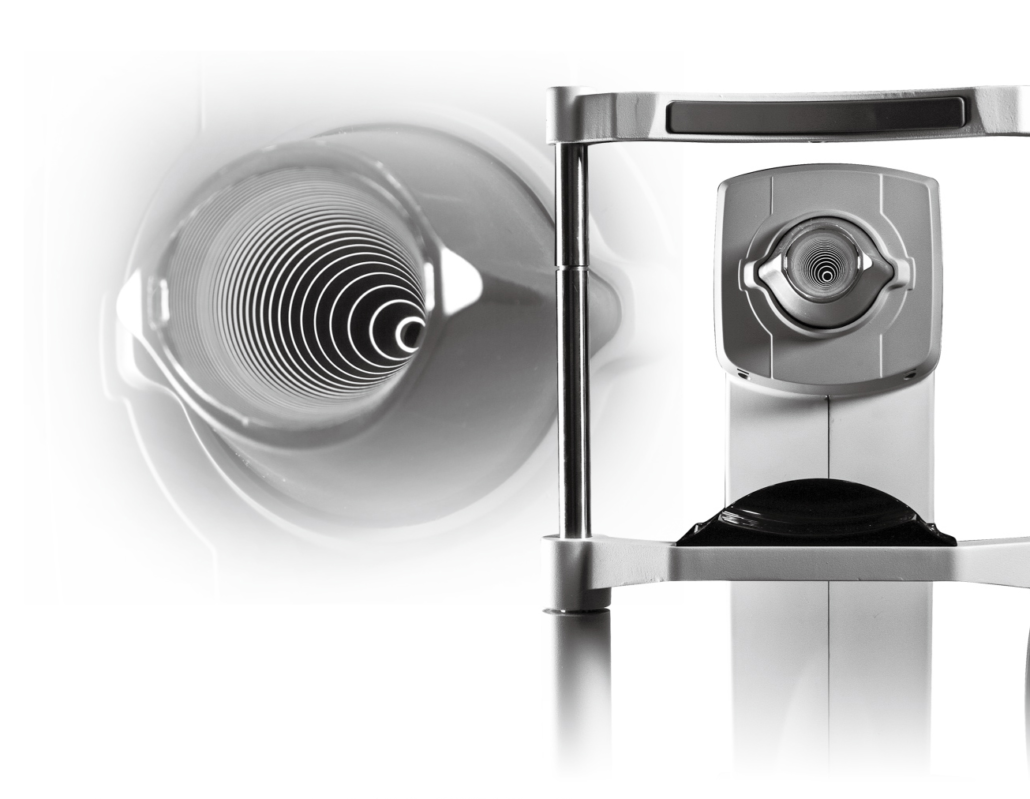

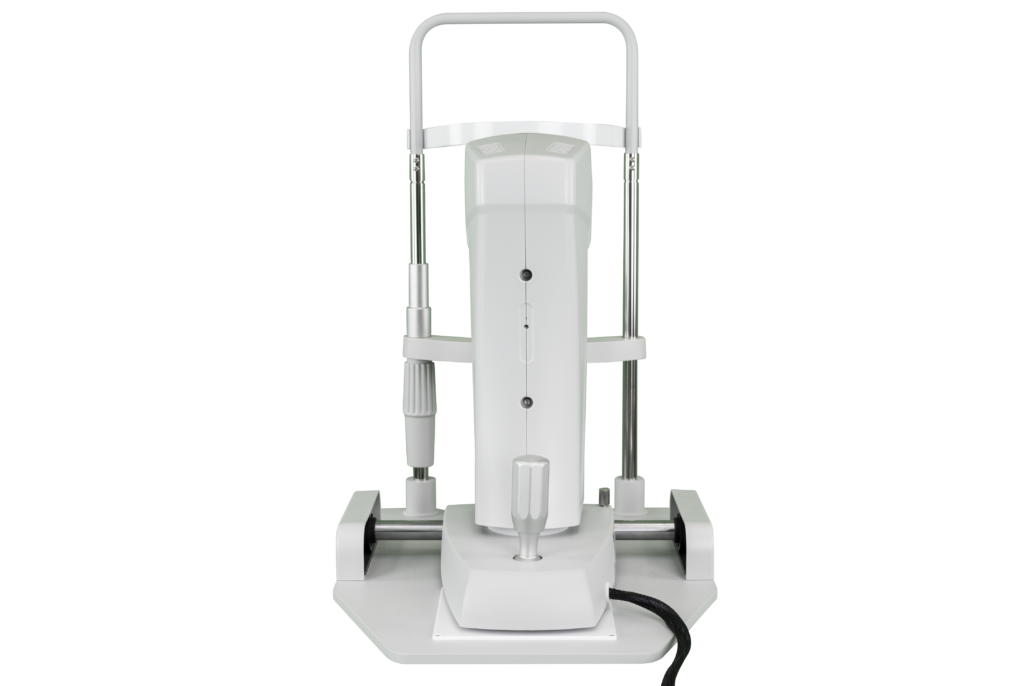

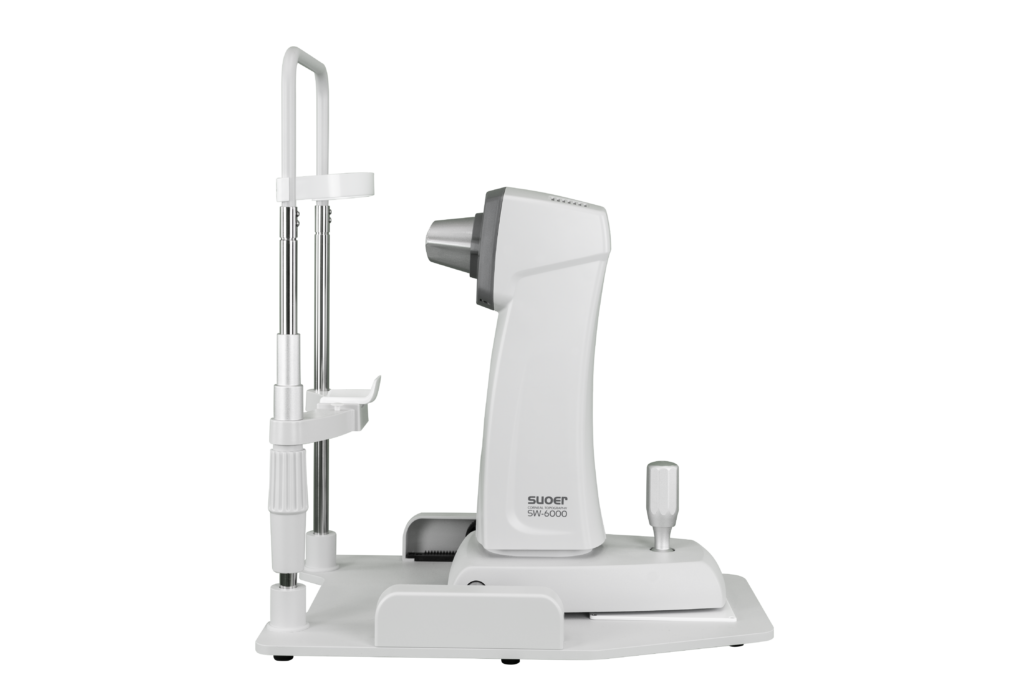

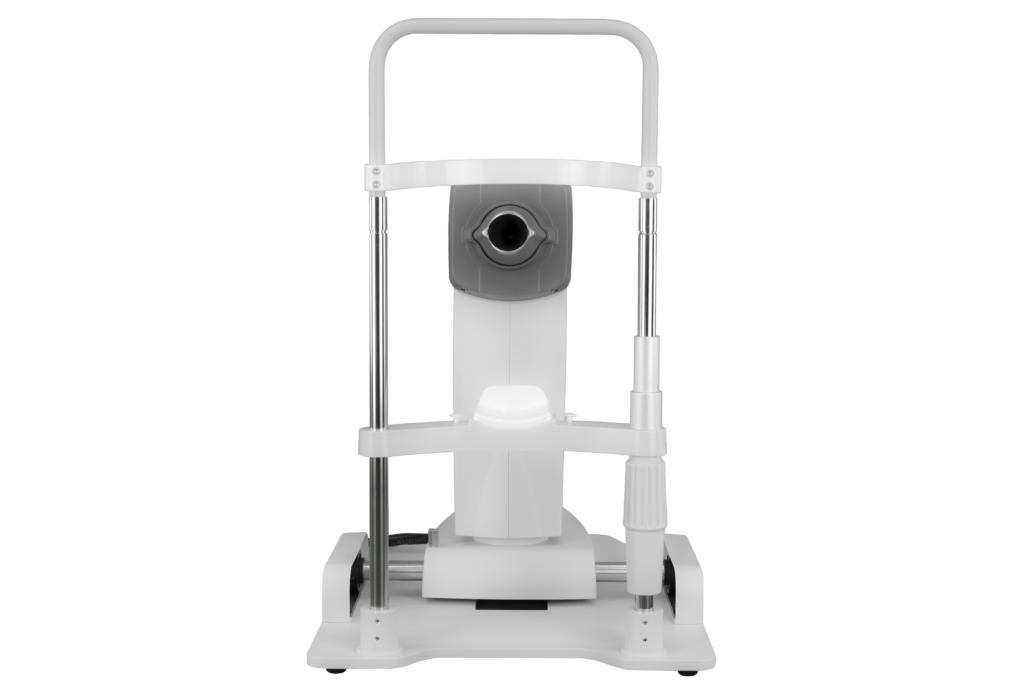

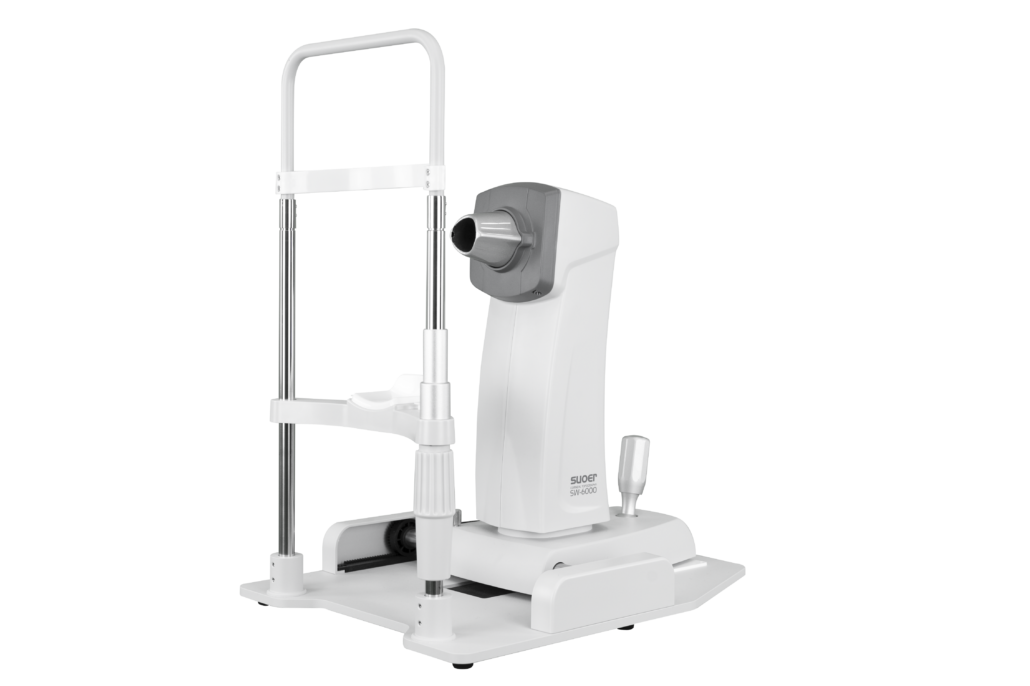

SUOER Corneal Topographer (SW-6000): using PLACIDO cone, 31 rings and a total of 7936 points, to measure and obtain analysis of corneal shape and corneal refraction data. The SW-6000 has included readings such as: axial curvature, tangential curvature, altitude map, simulated keratoscopy and corneal 3D map.
Measuring Mode: Placido Cone
Coverage Range of Measurement :10.91mm (Diameter)
Measuring Range of Curvature Radius:
5.5mm-10.0mm(33.75D-61.36D)
Precision: ±0.02mm
Placido Rings: 31 Rings
Measurement Points:7936 Points
Display: Axial Curvature Map, Tangential Curvature Map, Elevation
Map,Imitated Keratoscope Map and 3D cornea Map
Image Output:High-Quality color inkjet printer
Adjust Moving Range:
Left-Right: 0 to 86mm
Forward-Backward: 0 to 40mm
Up-Down: 0 to 30mm
Chinrest: 0 to 50mm
Cornea Contact Lenses Fitting Function
Keratoconus Detectiong Function
