2.5 mm Mid-Reach Retinal Probe
The mid-reach retinal pencil has a shorter shaft than the standard retinal probe and a right-angled flat application tip to optimise contact for retinal tears, holes, treatment of retinopathy of prematurity (ROP), pneumatic retinopexy and can be used during scleral buckle procedures for retinal detachments. The serrated grooves on the reusable probe handle facilitate a better grip of the probe and rotation of the probe during use. The tactile positioning groove on the handle allows the user to orientate the tip of the probe while continuing to view the pathology through a BIO.
Keeler reusable probes are designed to provide total reliability, with fast freezing and defrosting.
Technical characteristics
Compatibility: Keeler Cryomatic MKII
Sterilisation process: Autoclavable
Gas compatibility: Medical grade CO2 or N2O
Total length: 4m
Tip diameter: 8mm
Ice-ball length: 5mm
Tip extension length: 9mm
Standard warranty: 2 years
2.5 mm Standard Retinal Probe
The Standard retinal pencil is Keeler’s flagship reusable probe. The probe tip has been designed to gain optimal results during retinal cryopexy. The probe has been designed to treat pathologies such as retinal tears, holes, treatment of retinopathy of prematurity (ROP), pneumatic retinopexy and can be used during scleral buckle procedures for retinal detachments. The serrated grooves on the reusable probe handle facilitate a better grip of the probe and rotation of the probe during use. The tactile positioning groove on the handle allows the user to orientate the tip of the probe while continuing to view the pathology through a BIO.
Keeler reusable probes are designed to provide total reliability, with fast freezing and defrosting.
Technical characteristics
Compatibility: Keeler Cryomatic MKII
Sterilisation process: Autoclavable
Gas compatibility: Medical grade CO2 or N2O
Total length: 4m
Tip diameter: 8mm
Tip angle: 45 degrees
Tip extension length: 9mm
Ice-ball diameter: 5mm
Standard warranty: 2 years
Cryo II Glaucoma Probe
The Keeler Cryomatic MKII Glaucoma pencil has been designed to conduct cyclo-destructive procedures in refractory glaucoma. The serrated grooves on the reusable probe handle facilitate a better grip of the probe and rotation of the probe during use. The tactile positioning groove on the handle allows the user to orientate the tip of the probe while continuing to view the pathology.
Keeler reusable probes are designed to provide total reliability, with fast freezing and defrosting.
Technical characteristics
Compatibility: Keeler Cryomatic MKII
Sterilisation process: Autoclavable
Gas compatibility: Medical grade CO2 or N2O
Total length: 2.4m
Tip diameter: 3mm
Ice-ball size: 5mm
Tip extension length: 18.6mm
Standard warranty: 2 years
Cryo II Collins Trichiasis Probe
The Keeler Cryomatic MKII trichiasis pencil has been designed for cryo destruction of lash follicles. The serrated grooves on the reusable probe handle facilitate a better grip of the probe and rotation of the probe during use. The tactile positioning groove on the handle allows the user to orientate the tip of the probe while continuing to view the pathology.
Keeler reusable probes are designed to provide total reliability, with fast freezing and defrosting.
Technical characteristics
Compatibility: Keeler Cryomatic MKII
Sterilisation process: Autoclavable
Gas compatibility: Medical grade CO2 or N2O
Total length: 2.4m
Tip size: 4 x 10mm
Ice-ball length: 2.5mm
Tip extension length: 29.8mm
Standard warranty: 2 years

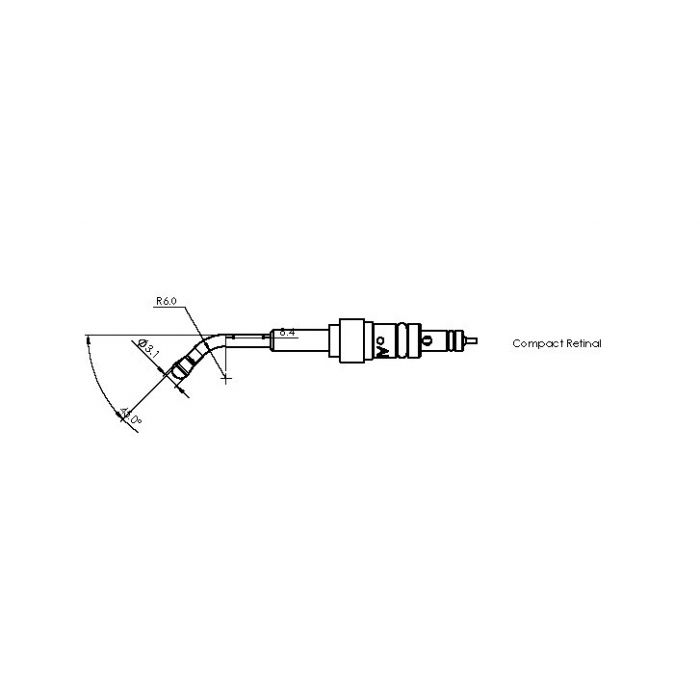

3.1 mm Compact Retinal Probe
Shaft has 45 degree angle, 8.4mm from base to angle. 20.5mm long shaft with a 3.1mm bell shaped tip.
The Keeler Cryomatic System produces greater reliability and a better freeze, as well as simplicity of set-up and operation, all of which combine to make it uniquely superior. The probes and their manufacturing processes have been fundamentally redesigned to minimize blocking due to impurities in the cryogen gas or from moisture resulting from sterilizing.
The Cryomatic MK II is designed for ease of connection and, with a classic tip form, are perfect for your needs. No matter what type of probe you are using, the intelligent software will automatically detect and optimize its parameters for perfect performance and ensure a short purge cycle time after time.
