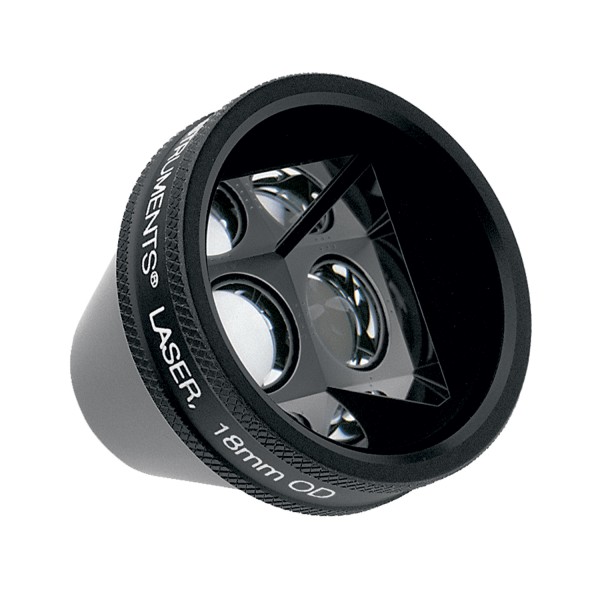

Product Code: OJKA
Image Mag: .93x
Laser Spot Mag: 1.08x
Contact Diameter: 18mm
Lens Height: 30mm
Static Gonio FOV: 140°
Journal Reference: Optometry Today Supplement, pp. 23-24, September 1992; Optometric Management, Vol. 35, No. 6, June 2000

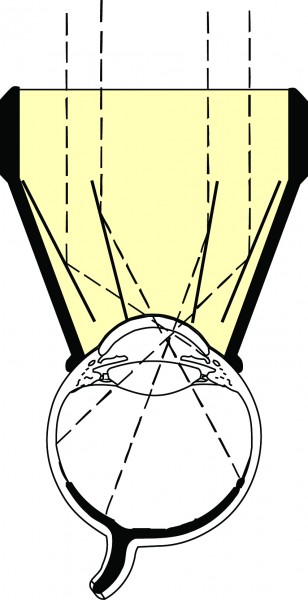

Four mirrors plus a central axis view give a complete view of the interior of the eye. Unique «depth dots» mark each mirror at the base for easy orientation. One dot, 62° (anterior chamber angle); two dots, 67° (ora serrata); three dots, 76° (mid-equator); four dots, 80° (mid-peripheral area). The mirrors provide fields of view that overlap completely. Gonio mag .80x. Gonio laser spot mag 1.25x.
