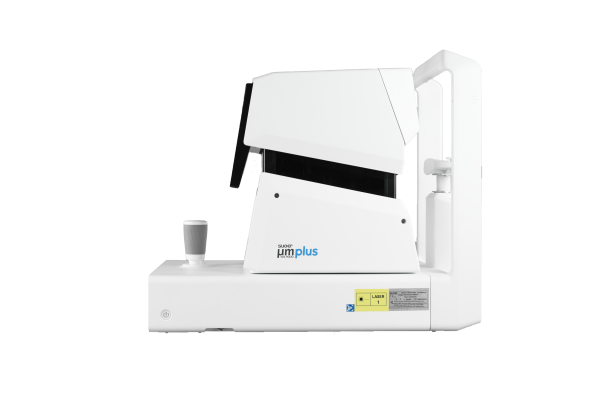

This optical biometric instrument is used for the measurement of the optic axis and the calculation for correct IOL readings with full accuracy. The fast measurement speed and non-contact are intended for patient comfortability. Capturing 8 different measurements in less than 5 seconds which are corneal thickness, anterior chamber depth, lens thickness, axial length, corneal curvature, axial angle, white to white distance measurement (corneal diameter), and pupil diameter.
Measurement Range:
Axial Length 12 – 34 mm
Central Corneal Thickness 300-800μm
Corneal Radii 4.8 – 11.1mm
Axis Angle 0°-180°
Anterior Chamber Depth 1.5 – 6.0mm
Lens Thickness 0.5 – 7.0mm
White-to-White 6.5 – 16.6mm
Pupil Diameter 1.9-13.5mm
Resolution:
Axial Length 0.01mm
Central Corneal Thickness 1μm
Corneal Radii 0.01mm
Axis Angle 1°
Anterior Chamber Depth 0.01mm
Lens Thickness 0.01mm
White-to-White 0.01mm
Pupil Diameter 0.01mm
SD of Repeatability:
Axial Length ±25μm
Central Corneal Thickness ±2μm
Corneal Radii ±10μm
Axis Angle ±9°
Anterior Chamber Depth ±20μm
Lens Thickness ±50μm
White-to-White ±0.3mm
Pupil Diameter ±0.3mm
IOL Calculation Formulas:
BinkHorst-II, Holladay, Hoffer-Q, Haigis, SRK-T, SRK-II
Calculation For Eyes Following Refractive Surgery:
Shammas-Pl, Masket, Modified Masket
Interfaces USB2.0
Voltage/Frequency AC 220V/50Hz
Power Consumption
50VA
Laser Class 1
